KEY FACTS

Terminology
- Chiari 1 malformation (CM1); synonyms: Chiari type 1, Chiari 1 deformity, cerebellar tonsillar ectopia
Imaging
- Pointed cerebellar tonsils extending ≥ 5 mm below foramen magnum (basion-opisthion/McRae line) with effacement of CSF spaces
- ± retroflexed odontoid, horizontal shortened clivus, basilar invagination, atlanto-occipital assimilation
- ± caudal descent of brainstem, brainstem compression, medullary kink
- ± syringohydromyelia, scoliosis
Top Differential Diagnoses
- Normal low-lying cerebellar tonsils
- Chiari 2 malformation
- Tonsillar herniation secondary to increased intracranial pressure
- Intracranial hypotension
Pathology
- Most common cause believed to be small/underdeveloped posterior fossa; no association with open spinal dysraphism
- Can be result of premature closure of sutures - Causes include shunted infantile hydrocephalus, bone dysplasias, genetic syndromes
Clinical Issues
- Most common presenting symptom: Occipital headache - Up to 30% of patients asymptomatic
- Goal of surgery in symptomatic patients: Restore normal CSF flow at foramen magnum - Suboccipital decompression, resection of C1 posterior arch ± duraplasty, cerebellar tonsil cautery
Diagnostic Checklist
- Degree of tonsillar descent does not always correlate with symptoms: CM1 frequently picked up incidentally
- Look for presence of syrinx → makes surgical intervention more likely

TERMINOLOGY

Synonyms
- Chiari type 1, Chiari 1 deformity
Definitions
- Chiari 1 malformation (CM1): Compressed & pointed cerebellar tonsils extending below foramen magnum with effacement of CSF spaces

IMAGING

General Features

Best diagnostic clue

- Pointed cerebellar tonsils (unilateral or bilateral) extending ≥ 5 mm below foramen magnum (basion-opisthion line, a.k.a. McRae line)
        - Mild variations in measurement reported in literature; measurement on its own may not be definitive of diagnosis
        - No consensus statement on exact definition

Location
```
- Craniocervical junction (CCJ)
```

Radiographic Findings
- Shortened horizontal clivus, basilar invagination, CCJ segmentation anomalies, scoliosis
CT Findings
- Crowding of foramen magnum on axial CT images - Sagittal reconstructed images are very helpful
- Partially imaged superior aspect of spinal cord syrinx may be identified
- Associated osseous anomalies may include small posterior fossa, short horizontal clivus, retroverted dens, basilar invagination, platybasia, hypoplastic occipital condyles, segmentation anomalies (such as atlantooccipital assimilation), scoliosis
MR Findings
- T1WI, T2WI, FLAIR - Pointed (not rounded) cerebellar tonsils extending ≥ 5 mm below foramen magnum - Crowded foramen magnum with small/effaced cisterns ± brainstem compression (kinking) - ± small posterior fossa, elongated 4th ventricle - ± syringohydromyelia/syrinx, scoliosis - Syrinx reported in 30-70% of cases - Patients with syrinx more likely to have scoliotic curve > 20⁰ (~ 70%) than those without syrinx (~ 45%) - Other descriptions usually considered subtypes - Chiari 1.5: Brainstem herniation - Obex located below foramen magnum - Complex Chiari: Medullary kink, retroflexed dens, abnormal clival-cervical angle, atlantooccipital assimilation, basilar invagination, platybasia
- MR cine - Restricted CSF flow through foramen magnum ± ↑ brainstem/cerebellar tonsil motion (pistoning) - Clinical utility of this sequence debatable

Imaging Recommendations

Best imaging tool

- Multiplanar MR
        - Axial True FISP/FIESTA MR of CCJ helpful in assessing degree of foramen magnum crowding
- Spine imaging to look for spinal cord syrinx
        - Syrinx makes surgical intervention more likely

DIFFERENTIAL DIAGNOSIS

Normal Variation of Cerebellar Tonsil Position
- Tonsils may normally lie below foramen magnum - May be accentuated by certain head positions
- Tonsils retain normal rounded configuration
Chiari 2 Malformation
- Numerous intracranial findings centered around very small posterior fossa with hindbrain herniation in setting of open spinal dysraphism
- More severe clinical phenotype than CM1
Tonsillar Herniation Secondary to Increased Intracranial Pressure
- Neoplasm, hemorrhage, hydrocephalus, infarct
Intracranial Hypotension
- Look for "slumped" brainstem
- Sagging midbrain, sunken hindbrain with diffuse dural thickening/enhancement, distended veins/dural sinuses, ± subdural hygromas
Chiari 0
- Syringomyelia without cerebellar tonsillar ectopia; syrinx resolves after posterior fossa decompression
- Diagnosis of exclusion (many other causes of spinal cord syrinx)

PATHOLOGY

General Features

Etiology

- Primary congenital malformation vs. secondarily acquired morphologic changes
- Primary: Posterior fossa underdevelopment theory most common
        - Underdevelopment of endochondral occipital bone → small posterior fossa vault + downward hindbrain herniation
        - Not all Chiari 1 patients have small posterior fossa
- Secondary: Premature closure of cranial sutures &/or generalized abnormal bone formation
        - Shunted infantile hydrocephalus
        - Calvarial thickening of bone dysplasias or thalassemia
        - Genetic syndromes
- Seen in 2-10% of patients with idiopathic intracranial hypertension (a.k.a. pseudotumor cerebri)

Genetics

- Small posterior fossa in isolation is heritable
        - Multiple potential causative genes on chromosome 1 & 22 identified
- Syndromic/familial associations (up to 60% of cases)
        - Craniosynostosis syndromes (ERF-related, FGFR-related: Apert, Crouzon, Pfeiffer)
        - Osteopathic syndromes (achondroplasia, rickets)
        - Vertebral anomalies (Klippel-Feil, VACTERL)
        - Craniofacial anomalies (Pierre-Robin, Goldenhar)
        - Macrocerebellum (Costello syndrome, Sotos syndrome, macrocephaly-capillary malformation syndrome, Alexander disease)
        - Increased brain volume (NF1/RAS/MAPK mutations/RASopathies, PTEN-PI3K/AKT mutations/PTENopathies)
        - Many others: Ehlers-Danlos syndrome, Marfan syndrome, Williams syndrome, Kabuki syndrome

Gross Pathologic & Surgical Features
- Herniated cerebellar tonsils become atrophic/gliotic/necrotic
- Arachnoid scarring & adhesions at foramen magnum

CLINICAL ISSUES

Presentation

Most common signs/symptoms

- Occipital headache
        - Exacerbated by cough, Valsalva, neck extension, or physical exertion
- Less common: Cerebellar, brainstem, bulbar, cord motor/sensory symptoms
        - Cerebellar symptoms: Ataxia, dysarthria, oscillopsia, nystagmus
        - Brainstem and Bulbar symptoms: Vertigo, diplopia, dysphagia, aspiration, apnea, syncope, bradycardia, sudden death (rare)
        - Spinal cord dysfunction: Motor and sensory losses, hyporeflexia, hyperreflexia, clonus, gait disturbance, neuropathic joint, urinary incontinence, positive Babinski sign, scoliosis
- 15-30% of adults with CM1 are asymptomatic, up to 35% of children with 5-10 mm of tonsillar herniation are asymptomatic
- Not much difference in clinical symptoms between complex Chiari & typical Chiari 1

Demographics
- True prevalence is unknown given how frequently it is picked up incidentally
- Epidemiology: 0.5-3.5% of general population
- Age: Evenly distributed in adult & pediatric patients - 3% of children & 1% of adults have imaging findings of CM1, though age of clinical presentation unclear - One series reports median age of presentation in children ≈ 8 years
- Sex: F > M (as high as 3:1)
Natural History & Prognosis
- Natural history not clearly understood - Many patients asymptomatic for prolonged periods - Increasing ectopia + time → ↑ likelihood of symptoms
- Children respond better to treatment than adults
- Patients selected for nonsurgical management usually have benign course, though spontaneous improvement & worsening have been described
Treatment
- Posterior fossa decompression: Suboccipital craniectomy with C1 laminectomy ± duraplasty, arachnoid opening/dissection, cerebellar tonsil cautery/resection - ↓ of syrinx size in majority of patients after decompression
- Complex Chiari 1 may also require odontoid resection or craniocervical junction fusion
- Scoliosis may improve from decompression alone but often requires bracing or additional surgery
- Postoperative complications in approximately 20% of adults and 37% of children - Most common: CSF leak, pseudomeningocele, infection - Increased risk with duraplasty - 1-11% postoperative mortality
- Conservative management for asymptomatic or minimally symptomatic children without syrinx

DIAGNOSTIC CHECKLIST

Consider
- Degree of tonsillar descent does not always correlate with symptoms: CM1 frequently picked up incidentally
Image Interpretation Pearls
- Description of additional posterior fossa findings helpful for surgical planning - Look for variant occipital venous sinus (at site of future decompression)

24070612-ef62-48e4-90d7-6bdaad64902a

References

Selected References

Differential diagnosis

Cisterna Magna Mass

DDX:047add0c-7e4f-40a0-9933-8d6fa00a24f7

Congenital Cerebellar Malformation

DDX:e0a671d3-a236-4ff9-a232-a9684218d010

Foramen Magnum Mass

DDX:a79c61b3-b26a-48c8-bcfb-bf8afd3ef25e

Images

Selected Images

Sagittal graphic demonstrates pointed cerebellar tonsils extending below the foramen magnum to the inferior aspect of the C1 posterior arch. The obex is inferiorly displaced as well.

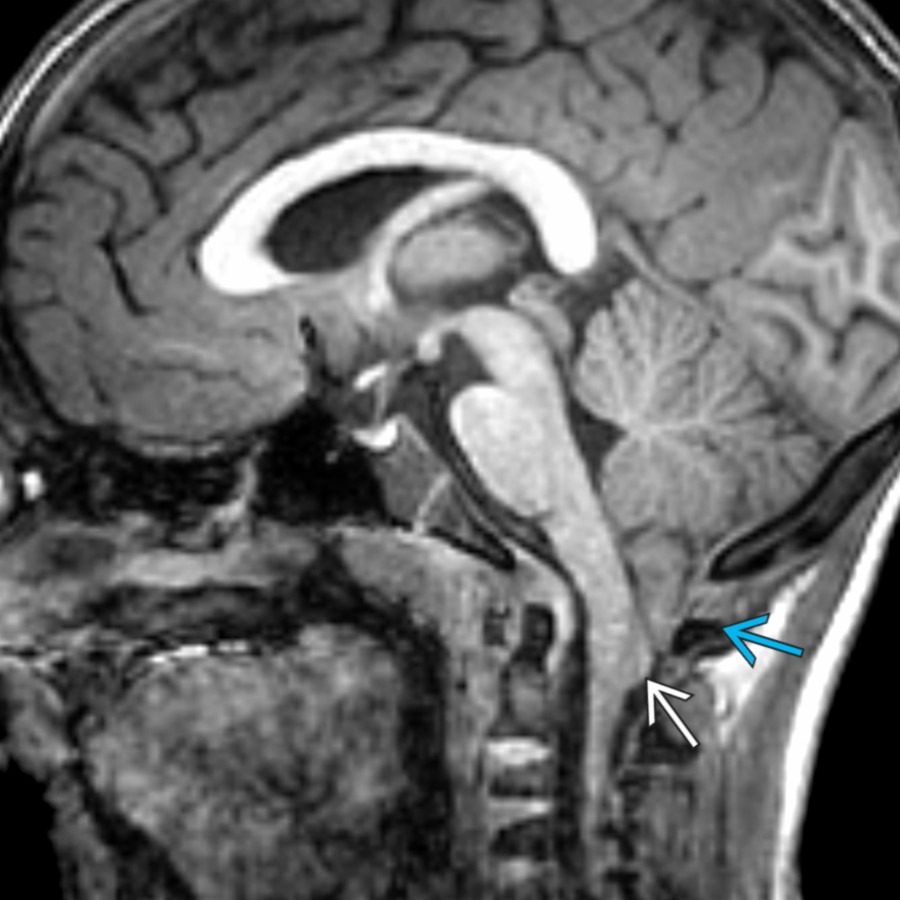

Sagittal T1 MR of an 8-year-old with boy incidentally noted Chiari 1 malformation (CM1) demonstrates pointed, low-lying cerebellar tonsils reaching the level of the posterior C1 arch as well as downward displacement of the brainstem with cervicomedullary junction just below C1 posterior arch .

Coronal T1 MR in the same patient demonstrates the left cerebellar tonsil is lower than the right. In CM1, either one or both cerebellar tonsils may be involved.

Axial FIESTA MR through the foramen magnum in the same patient demonstrates posterior displacement of the dens with associated deformity of the ventral caudally displaced medulla. Partial effacement of the CSF spaces surrounding the cerebellar tonsils denotes moderate foramen magnum crowding.

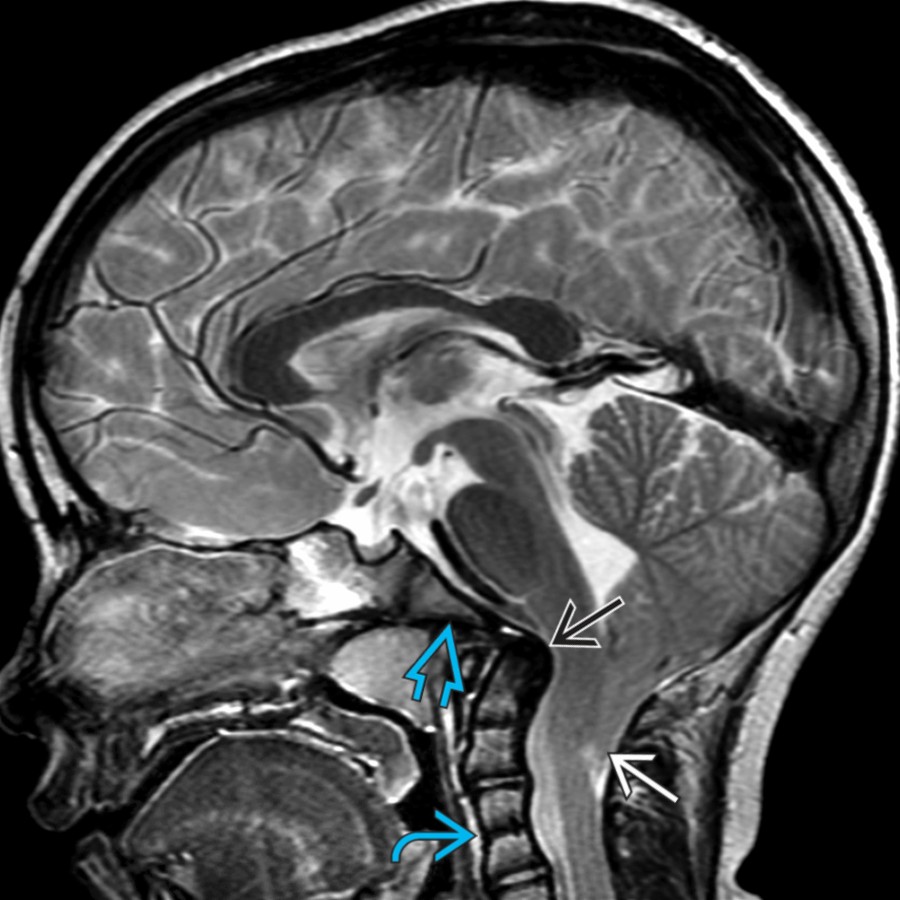

Sagittal T2 MR in a 5 year old with occipital headaches demonstrates pointed, low-lying cerebellar tonsils with associated effacement of CSF spaces. Note the short horizontal clivus , retroverted dens , and segmentation anomaly at the C3-4 levels .

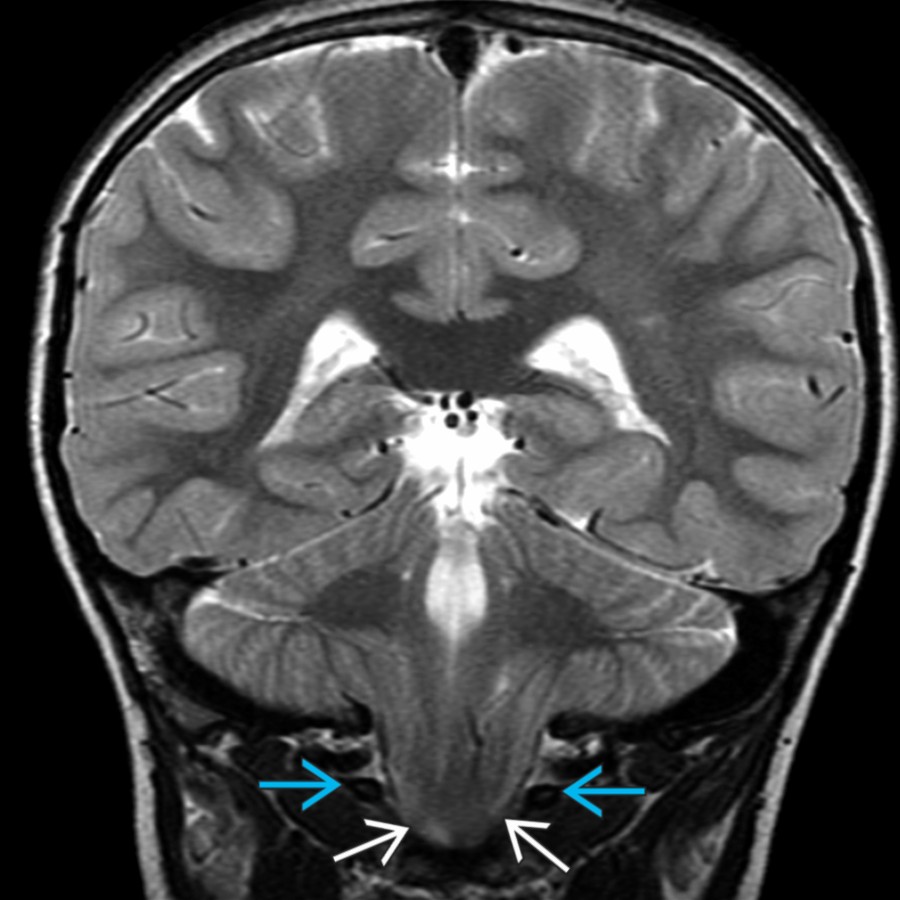

Coronal T2 MR in the same patient demonstrates pointed, low-lying cerebellar tonsils extending below the C1 ring , typical of CM1.

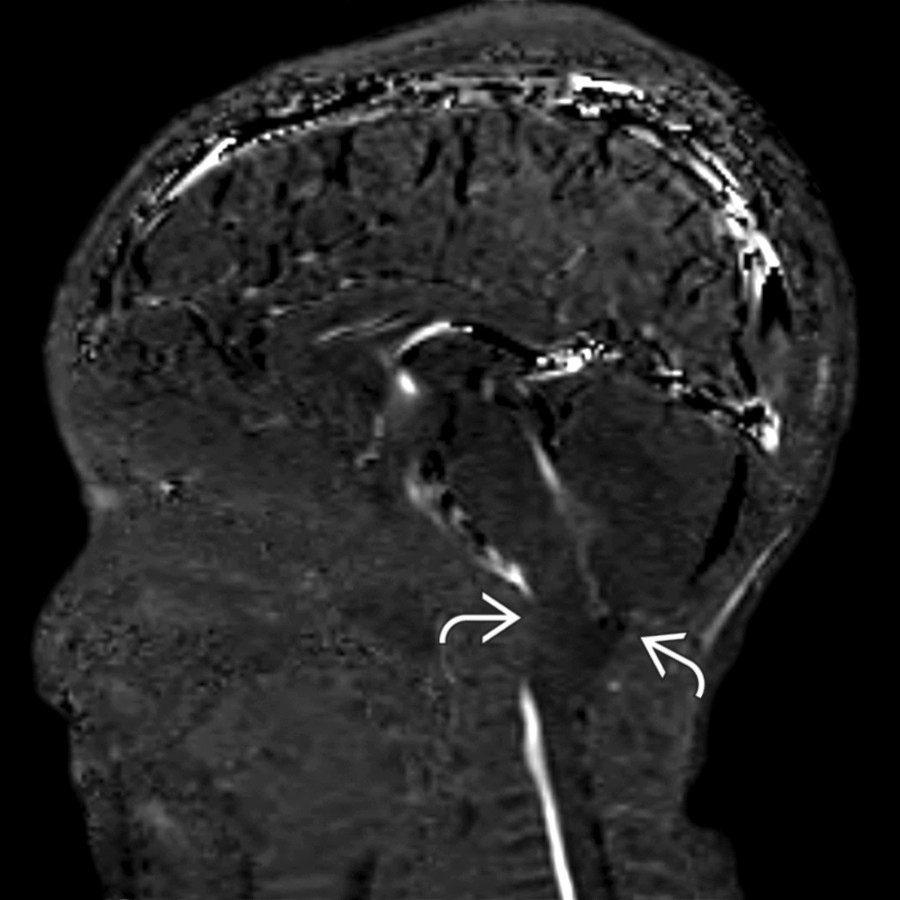

Sagittal phase contrast cine MR (with hyperintense signal at sites of active CSF or venous flow) in the same patient shows absence of CSF flow at the craniocervical junction due to the CM1.
