KEY FACTS

Terminology
- Rare catecholamine-secreting tumor arising from chromaffin cells of adrenal medulla
- Termed paraganglioma if extraadrenal
Imaging
- Best diagnostic clue - Adrenal mass in setting of clinical symptoms or biochemical abnormality - Paroxysmal headache, palpitations, sweating - ↑ levels of 24-hour urine-fractionated metanephrines
- "Imaging chameleon": Variable US/CT/MR appearance; mimics other lesions - Commonly solid and hypervascular ± cystic change, necrosis, and calcification - Can be purely cystic
- 1st line: CT or MR
- US: Comparable to CT in detecting adrenal tumors; limited for extraadrenal disease
- I-123 MIBG: For extraadrenal, metastatic, or recurrent disease
Top Differential Diagnoses
- Adrenal adenoma
- Adrenal metastases or lymphoma
- Adrenocortical carcinoma
- Adrenal neuroblastoma
- Adrenal granulomatous infection
Diagnostic Checklist
- Remembered as "r****ule of 10s" - 10% extraadrenal (paraganglioma) - 10% bilateral (suggest hereditary disease) - 10% pediatric (suggest hereditary disease) - 10% contain calcification - 10% malignant (↑ extraadrenal cases) - 25% familial (previously thought to be 10%)

TERMINOLOGY

Definitions
- Paraganglioma: Neuroendocrine tumor arising from paraganglia anywhere in sympathetic chain
- Pheochromocytoma: Adrenal medullary paraganglioma arising from catecholamine-secreting chromaffin cells of adrenal medulla

IMAGING

General Features

Best diagnostic clue

- Adrenal mass in setting of clinical symptoms or biochemical abnormality

Location

- Paragangliomas can occur along sympathetic chain from neck to urinary bladder
- Majority are subdiaphragmatic (98%)
        - Adrenal (90%)
        - Extraadrenal (10%)
                  - Organ of Zuckerkandl, 2.5% [from superior mesenteric artery (SMA) to aortic bifurcation, mostly around inferior mesenteric artery]
                  - Urinary bladder sympathetic chain, 1%
- Typically unilateral
- Bilateral: Commonly with hereditary conditions

Size

- Variable: Typically 3-5 cm (can be up to 15 cm)

Morphology

- Well-circumscribed, encapsulated tumor
- Variable size and appearance on morphology and imaging renders name "chameleon tumors"
        - Commonly solid and hypervascular ± cystic change, necrosis, and calcification
        - Can be purely cystic
- Pheochromocytomas and paragangliomas demonstrate similar imaging features but vary in location

Ultrasonographic Findings

Grayscale ultrasound

- Variable appearance: Solid (75%) > solid/cystic or cystic
        - Iso-/hypoechoic (75%) or hyperechoic (25%) to renal cortex
- Small tumors: Solid, well-circumscribed; uniform echoes → can be poorly delineated due to obscuration from overlying bowel gas
- Large tumors: Solid, heterogeneous, or homogeneous echotexture
        - Heterogeneity due to necrosis (hypoechoic) and hemorrhage (hyperechoic)
- Can be predominantly cystic due to chronic hemorrhage and necrotic debris (fluid-fluid level)
- Always evaluate bladder wall, renal hilum, and organ of Zuckerkandl at origin of inferior mesenteric artery (CT more sensitive)

Color Doppler

- Hypervascular ± heterogeneous
- Compression/invasion of inferior vena cava (IVC)/renal vein
        - Seen with both benign and malignant tumors

CT Findings
- NECT: Well-defined mass with low soft tissue attenuation - Generally attenuation > 10 HU; however, rarely intracellular fat may result in lower attenuation → posing challenge to differentiate from adenoma - ± ↑ density (hemorrhage), ↓ density (cystic degeneration; necrosis), calcification (rare; 10%)
- CECT: Marked enhancement; may be heterogeneous due to hemorrhage/necrosis - Variable washout characteristics: Can show rapid washout that mimics adenoma - No convincing evidence that IV injection of iodinated contrast precipitates hypertensive crisis
MR Findings
- T1WI: Isointense to muscle and hypointense to liver - Variable signal intensity if necrosis/hemorrhage present - Rarely, contain microscopic fat on chemical shift imaging, mimicking adenoma
- T2WI: T2 hyperintense due to ↑ water content (cystic/liquefactive necrosis) - Classic light bulb appearance of marked T2-bright signal intensity (SI), variably (present in up to 2/3) - 35% have low T2 SI (isointense to spleen) - Most common: Heterogeneously enhancing lesion with multiple high-SI pockets
- T1WI C+: Characteristic salt and pepper pattern - Salt (enhancing parenchyma); pepper (↑ vascular flow voids due to hypervascular tumor)
Nuclear Medicine Findings
- 1st line: I-123 metaiodobenzylguanidine (MIBG) - Norepinephrine analog - After 24-72 hours: ↑ uptake of I-123 MIBG in tumor - Useful for extraadrenal, metastatic, recurrent disease - Sensitivity (77-90%); specificity (95-100%)
- 2nd line: 111In-pentetreotide FDG PET
- F-18 fluorodopamine, F-18 dihydroxyphenylalanine (DOPA) analogs

Imaging Recommendations

Best imaging tool

- **NE + CECT**: Overall 93-100% sensitive; however, up to 40% of extraadrenal lesions may be missed on CT
- **I-123 MIBG**: Superior detection of extraadrenal, metastatic, &/or recurrent disease
- US limited for smaller adrenal tumors; poor sensitivity for extraadrenal lesions

Protocol advice

- Include aortic bifurcation in CT/MR FOV to evaluate for paragangliomas (along sympathetic chain)

DIFFERENTIAL DIAGNOSIS

Adrenal Adenoma
- Most common benign adrenal lesion
- Pheochromocytomas tend to be larger than adenomas
- Cystic and rare microscopic fat-containing pheochromocytomas may also be hypodense on NECT
- Adenoma: Characteristic CT washout and MR signal dropout (majority)
Adrenal Metastases
- Most common malignant adrenal neoplasm (up to 25%)
- Typically bilateral; delayed contrast washout
Adrenal Lymphoma
- Large infiltrative, bilateral masses; maintain adrenal contour
- 25% secondary to non-Hodgkin lymphoma; primary is rare
Adrenocortical Carcinoma
- Rare; aggressive; large, unilateral, heterogeneous solid mass with necrosis; hemorrhage ± calcification
- T2 hyperintense and T1 hypointense to liver (as with "classic" pheochromocytomas)
- Aggressive, often with IVC extension
Adrenal Neuroblastoma
- Large pediatric adrenal mass; calcification (80-90%)
Adrenal Granulomatous Infection
- TB, histoplasmosis, other fungal diseases; usually bilateral - Acute (hypoechoic masses) or chronic (small and calcified)

PATHOLOGY

General Features

Associated abnormalities

- Majority are sporadic
- 25% have autosomal dominant gene mutation
        - **Multiple endocrine neoplasia type 2 (MEN2)**
                  - *MEN2*mutation; 50% have pheochromocytoma
                  - Medullary thyroid carcinoma, hyperparathyroidism, neuromas, and marfanoid habitus
        - **von Hippel-Lindau (VHL) disease**
                  - *VHL*tumor suppressor gene; 10-25% risk
                  - Multiple benign and malignant tumors
        - **Neurofibromatosis type 1**
                  - Rare cause of pheochromocytomas; 1% risk
                  - Cutaneous/plexiform neurofibromas, optic nerve gliomas, peripheral nerve sheath tumors, gastrointestinal stromal tumors
        - **Pheochromocytoma-paraganglioma syndromes**
                  - Mutations of succinate dehydrogenase gene family; 50% risk
                  - ↑ incidence of extraadrenal tumors and head/neck paragangliomas

Most are benign; 10% are malignant - Diagnosis of malignancy is based solely on presence of direct local tumor invasion or metastatic disease - Extraadrenal paragangliomas are more likely to be malignant

Gross Pathologic & Surgical Features
- Small tumor: Well-circumscribed, yellow-tan lesion confined to adrenals
- Large tumor: Hemorrhagic, cystic/necrotic masses
Microscopic Features
- Predominantly chromaffin cells; occasionally spindle cells are dominant feature - Term pheochromocytoma refers to dusky color of cells stained with chromium salts
- No single histologic feature of pheochromocytoma consistently predicts malignancy - Definitive pathologic diagnosis of malignancy is based on presence of metastatic disease

CLINICAL ISSUES

Presentation

Most common signs/symptoms

- Majority are asymptomatic; symptoms may be episodic or paroxysmal
- Classic triad (arises from adrenergic excess)
        - Paroxysmal headache, palpitations, sweating
        - 90% specific but uncommon (only present in 10.0-36.5% of patients)

Other signs/symptoms

- Hypertensive crisis: Palpitations, tremors, arrhythmias, pain, myocardial infarction

Laboratory data - Tumors typically secrete norepinephrine > epinephrine - **↑**levels of 24-hour urine-fractionated metanephrines - 90-97% sensitivity; 69-98% specificity

Demographics

Age

- Sporadic cases, 3rd and 4th decades
- Hereditary cases, 3rd decade
- 10% are found in children

Sex

- Slight female predilection (M:F = 1:1.4)

Epidemiology

- Exact incidence: Unknown
        - Prevalence in hypertensive adults 0.1-0.6%
- Majority of pheochromocytomas are likely asymptomatic (incidentalomas)

Natural History & Prognosis
- Hypertensive crises and cardiovascular complications ↑ morbidity/mortality
- Prognosis: Noninvasive and nonmetastatic: Typically favorable
Treatment
- Symptomatic therapy: α-adrenergic blockade and calcium channel antagonists
- Laparoscopic resection/debulking for both benign and malignant tumors
- Adjuvant therapy (malignant tumors): I-131 MIBG therapy ± chemotherapy (cyclophosphamide, vincristine, dacarbazine)

DIAGNOSTIC CHECKLIST

Consider
- Imaging can mimic other diagnoses; labs essential for diagnosis
Image Interpretation Pearls
- Extraadrenal tumors arise anywhere along sympathetic ganglia (neck to bladder), attention to these locations

c0256142-d2c8-452c-ad4f-032d36d44ba0

References

Selected References

Images

Selected Images

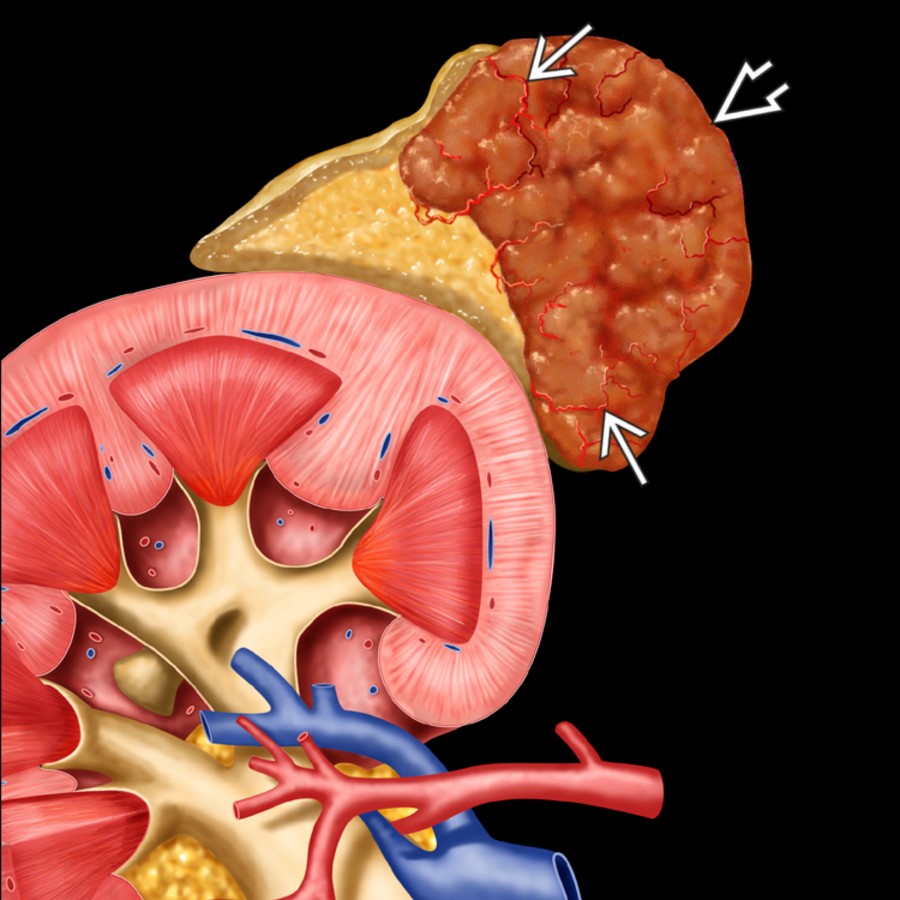

Graphic shows a typical pheochromocytoma , moderate in size with a well-circumscribed margin and solid appearance. Note hypervascularity of the mass, which commonly results in necrosis and cystic change.

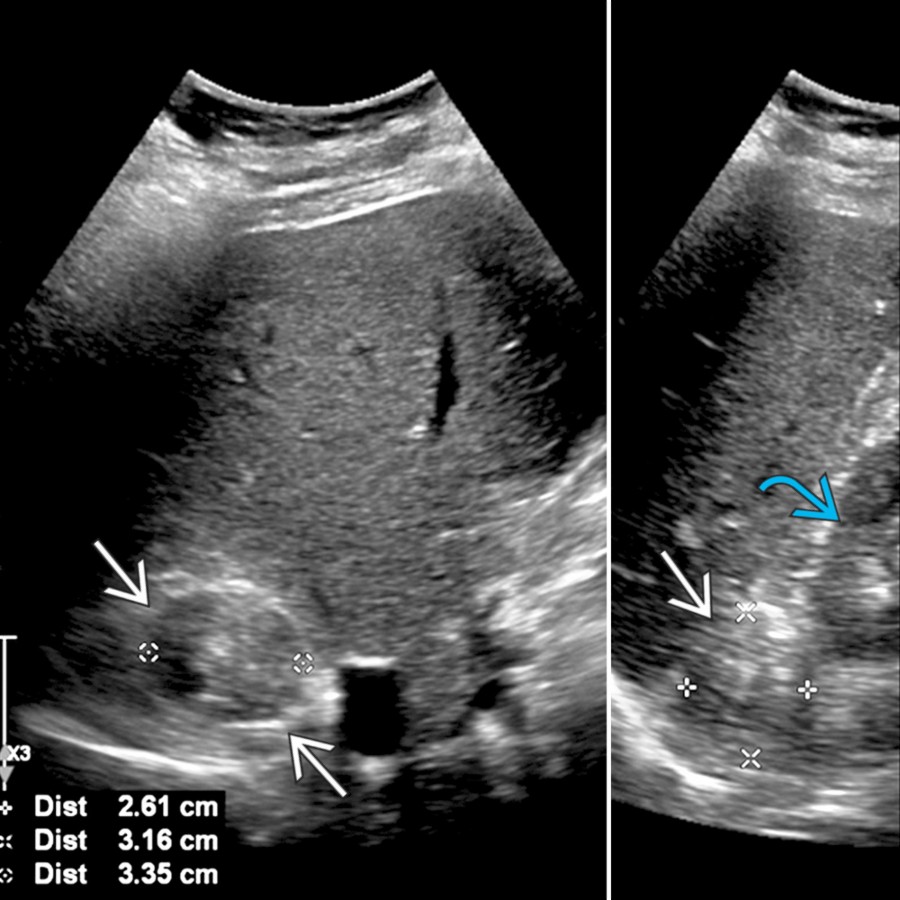

Transverse (left) and longitudinal (right) transabdominal ultrasound show a well-demarcated, heterogenous, solid right adrenal mass hyperechoic to the renal cortex , proven to be a pheochromocytoma.

Longitudinal transabdominal ultrasound demonstrates well-circumscribed, round, heterogeneous, hypoechoic mass in the right suprarenal region medially, proven to be a paraganglioma.

Axial CECT in the previous patient shows a well-circumscribed, round, heterogeneous, hypodense mass , anteromedial to the upper pole right kidney , proven to be a paraganglioma.

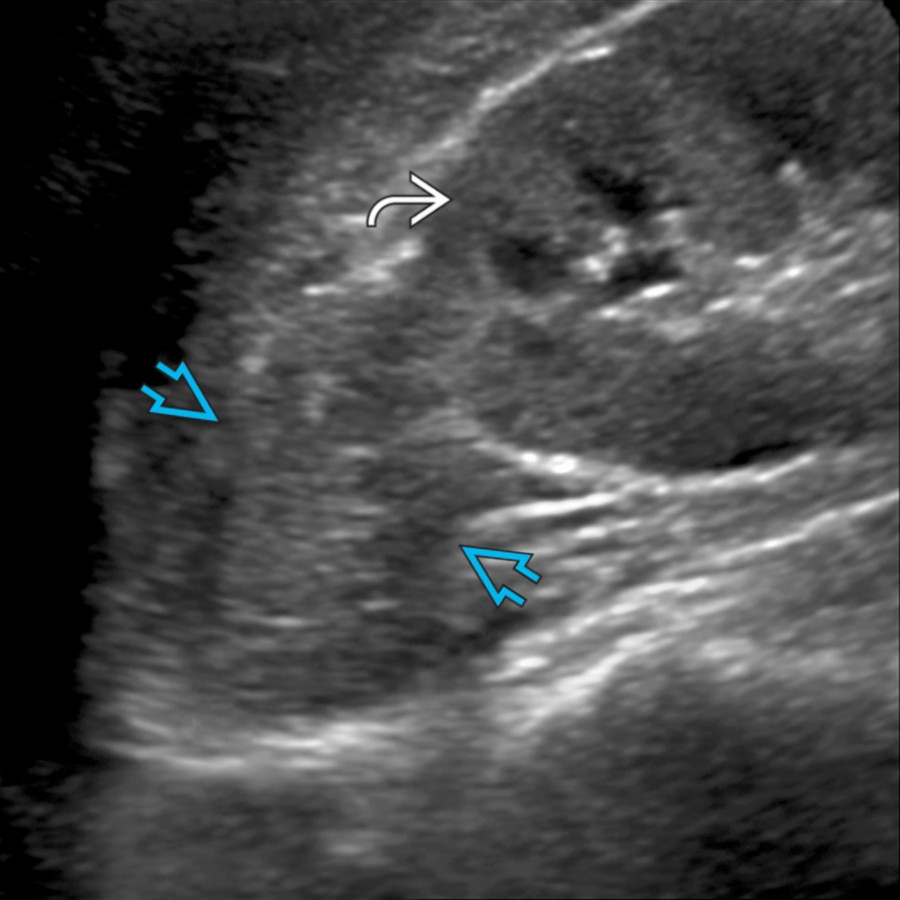

Longitudinal transabdominal ultrasound shows a large left adrenal mass , slightly heterogeneous and hypoechoic to the renal cortex .

Axial CECT in the same patient confirms the left adrenal mass , along with right adrenal mass and a liver lesion , confirmed lung cancer metastases.

Axial T2WI MR shows 2 well-circumscribed, paraaortic paragangliomas .

Corresponding axial T1WI C+ FS MR demonstrates the same paragangliomas . Notice the salt and pepper appearance of the right-most paragangliomas, consisting of enhancing parenchyma and internal flow void (hypervascularity).

Transverse transabdominal color Doppler ultrasound shows heterogenous, hypervascular mass anteromedial to the left kidney, confirmed paraganglioma.

Axial arterial-phase CECT in the same patient confirms a large heterogeneously enhancing mass in the left retroperitoneum , confirmed paraganglioma.

Additional Images

Transverse transabdominal color Doppler ultrasound of a right adrenal pheochromocytoma shows a well-defined, heterogenous mass .

Coronal CECT shows a large, well-defined mass with avidly enhancing solid portions and large, hypodense areas of necrosis , confirmed paraganglioma.

Axial fused PET/CT demonstrates ↑ radiotracer uptake within the solid portions of the paraganglioma, whereas the necrotic areas appear photopenic . The mass is distinct from the left kidney , but notice abutment/narrowing of the main left renal vein .

Transverse color Doppler ultrasound shows a right adrenal pheochromocytoma displacing and compressing the inferior vena cava .

Axial CECT shows a large, well-circumscribed, moderately enhancing right adrenal pheochromocytoma with hypodense area of necrosis .

DTPA-MIBG scan of the same patient shows uptake within the pheochromocytoma . Note DTPA uptake in kidneys . MIBG is useful to detect extraadrenal tumors.
